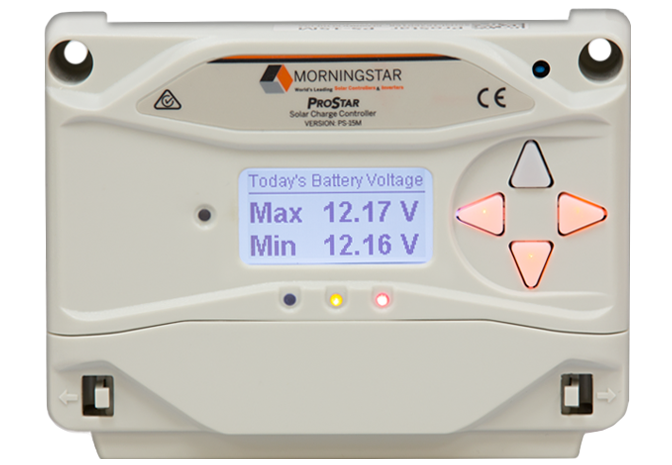

Part Number: PS-15M
Manufacturer: Morningstar
Voltage: 12 and 24
Amps: 15
Controller Type: PWM
Meter: Yes
Length: 6.0 IN
Width: 4.1 IN
Thickness: 2.2 IN
PDF-Datasheet: Download Here
Key Features and Benefits
- Estimated 15 year life
- PWM series battery charging (not shunt)
- 3-position battery select: gel, sealed or flooded
- Very accurate control and measurement
- Jumper to eliminate telecom noise
- Parallel for up to 300 amps
- Temperature compensated charging
- Tropicalization
- No switching or measurement in the grounded leg
- 100% solid state
- Very low voltage drops
- Current compensated low voltage disconnect (LVD)
- LED’s to indicate battery status and faults
- Capable of 25% overloads
- Remote battery voltage sense terminals
