Part Number: HUB-1
Manufacturer: Morningstar
Length: 5.30 IN
Width: 4.30 IN
Thickness: 1.50 IN
PDF-Datasheet: Download Here
Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2…) as well as aggregated data for the entire system.
Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.

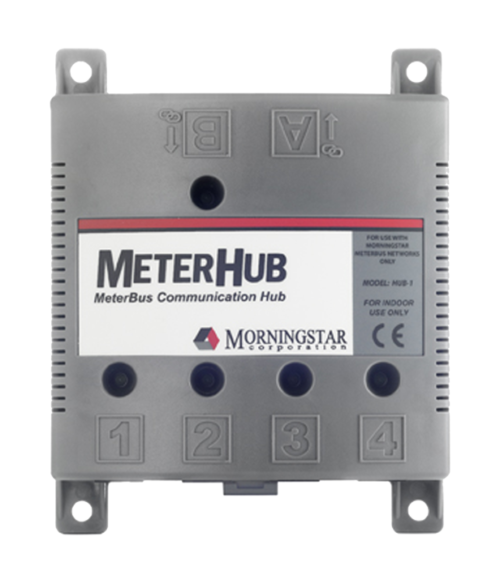

The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LED’s indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.
Key Features and Benefits
Compatible With:
- SunSaver-MPPT™
- TriStar™
- TriStar-MPPT™
- TriStar Meter-2™
- TriStar Remote Meter-2™
- Relay Driver™
Included in the Box:
- MeterHub Typical Network Configuration
- Operator’s Manual
- Five Meterbus RJ-11 cables – each 1 meter in length
- Four mounting screws
