Part Number: DFGC2H
Manufacturer: Dragonfly Energy
Voltage: 24
Amps: 50
Length: 12.75 IN
Width: 6.875 IN
Thickness: 9 IN
PDF-Datasheet: DOWNLOAD HERE

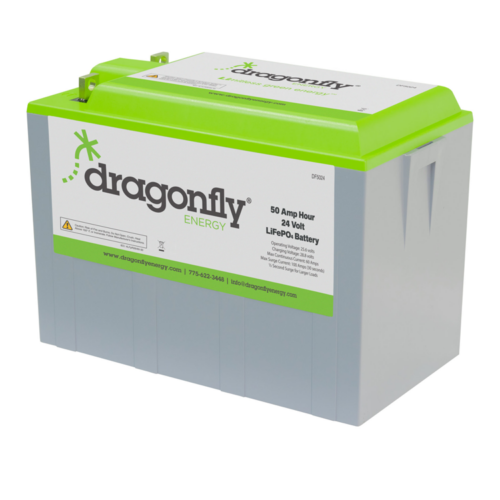

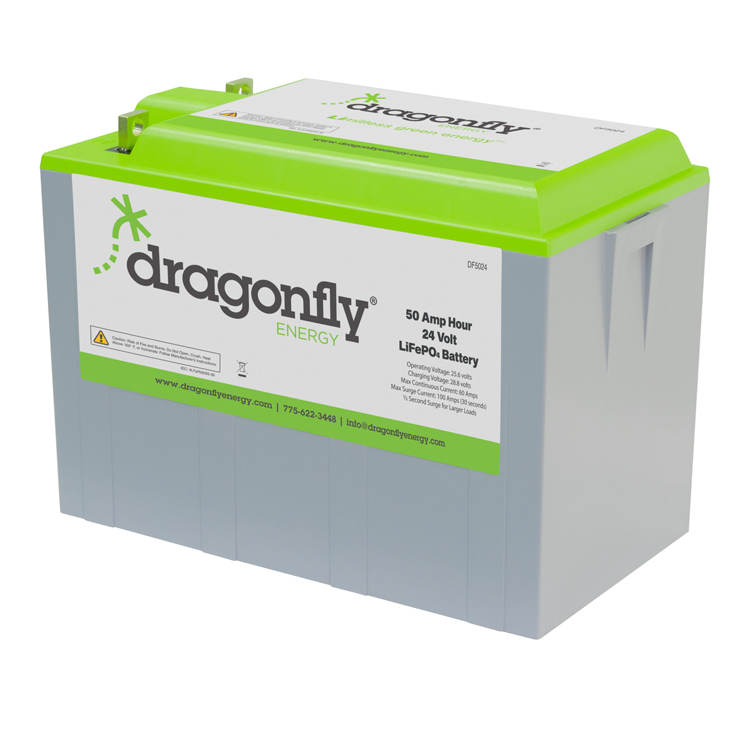

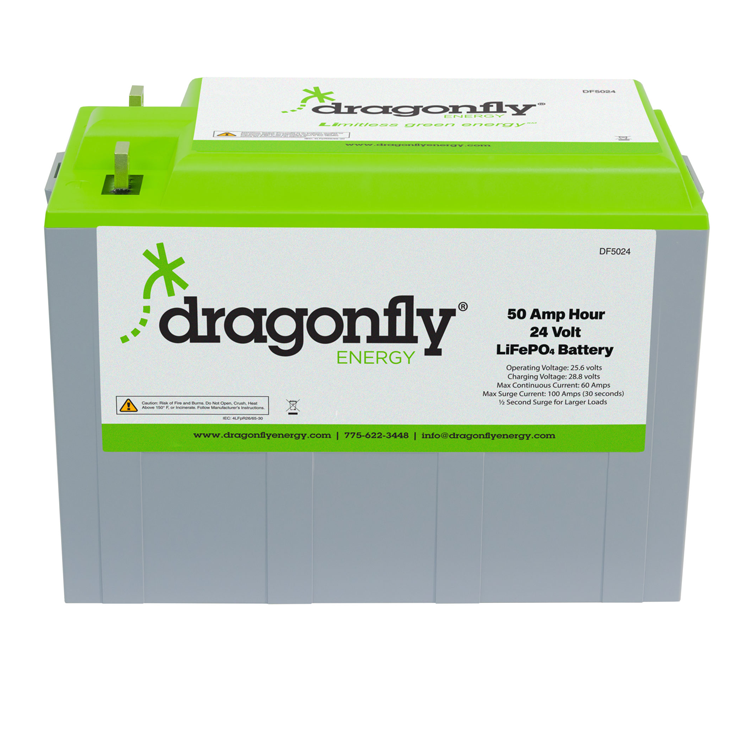

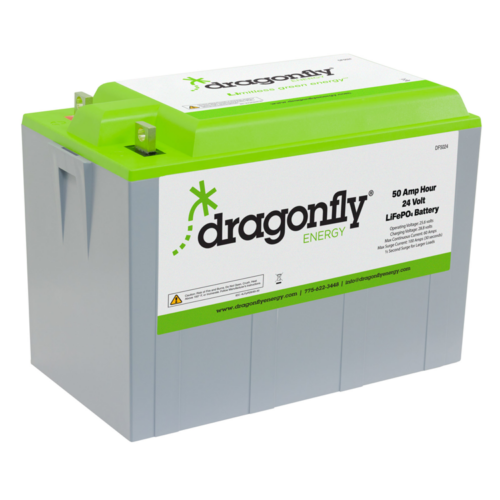

Dragonfly’s 50 amp hour, 24-volt battery weighs 31 lbs. and has a life expectancy of 3,000-5,000 cycles. It can be used in 24-volt, deep cycle applications including RV’s, boats, cabins, solar, golf carts and off-grid storage or structures. It is also capable of being run in-series for up to 48V.
These batteries are capable of delivering 60 amps continuously, with a 100 amp surge for up to 60 seconds and even higher loads for a ½ second. Equipped with automatic cell balancing at the top end of every charge, your battery is guaranteed to stay healthy for years to come.
Need more reasons to drop standard lead-acid batteries for Dragonfly?
- Double the power in the same physical space of a comparable sized lead acid.
- 1/5 the weight of a lead acid battery.
- Charges 5 times faster than lead acid.
- Last 10 times longer than lead acid.
- Can be discharged 100% vs lead acid recommended 50% depth of discharge.
- Can be safely installed indoors since there’s no toxic off gassing.
- Output voltage is flat during most of the discharge cycle, increasing efficiency of your system.
- Holds a charge for up to 1 year (without a load) without the need for a trickle charger. The ideal condition for unattended storage.
