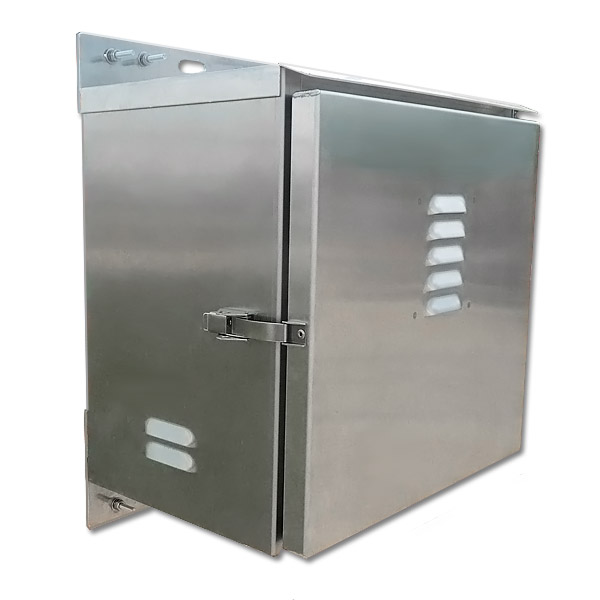

Part Number: BBA-1M
Manufacturer: OEM
Material: Aluminum (Standard), Stainless Steel
Available Finish: Mill (Standard), Powder Coat
UL Approved: Yes
Overall Dims (HxWxD – IN): 20.625 x 17.5 x 12.0
Inside Dims (HxWxD – IN): 15.875 x 16.0 x 11.0
Opening Dims (HxWxD – IN): 13.25 x 14.125
PDF-Datasheet:
Download Here

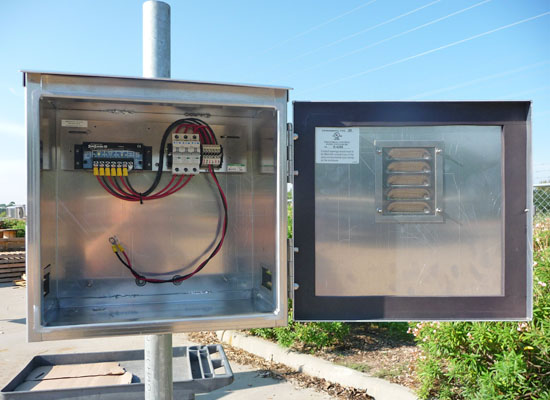

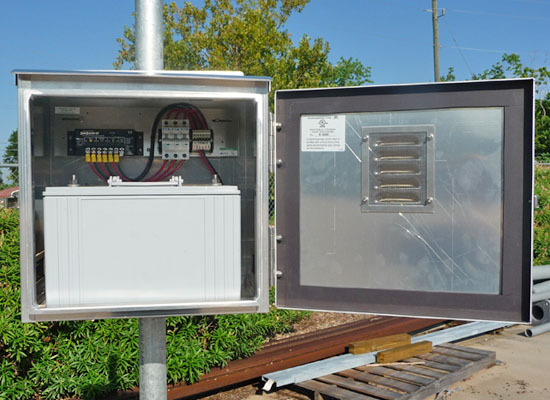

Need to integrate a back panel with a charge controller and a battery? We can design, build, and integrate a complete system for your solar battery enclosure! Take the guesswork out of your solar system and let us put together the perfect solution for you.

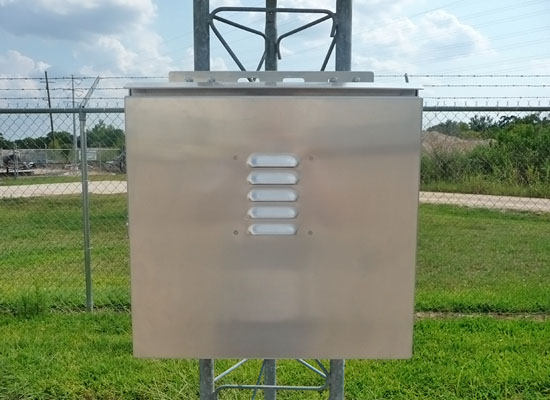

Ameresco Solar supplies and distributes a complete line of enclosures to accommodate a wide range of off-grid applications. We have a large selection of enclosures and control cabinets ranging from single battery pole, ROHN tower and wall mounted, to custom multi-battery enclosures. Our enclosure line has the flexibility to meet your storage needs.
Our BBA-1 Series Features Include:
UL Listed
- UL 508A, NEMA 3R (standard)
- NEMA 3R, NEMA 4, NEMA 4X
Materials
- Aluminum
- Stainless Steel (304 or 316)
Weight
- 22 lbs
Battery Capacity
- (1) Class : 27 Series
- (1) Class : 31 Series
- (2) Class : U1 Series
Back Panel Dimensions (HxW – IN)
- 14.125″ x 13.0″
Available Options
- Custom designed assembly (e.g., charge controller, breakers, wiring, back panel)
- Door fan

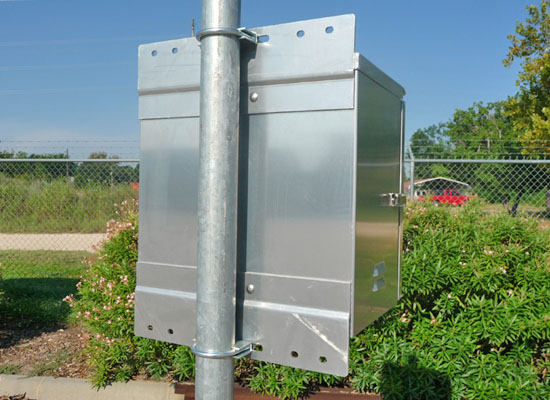

- Banding attachment
- Breather
- Drains
- Heat stripping
- Insulation
- Sun shields
- Key lock
